Unity Temple on the Plaza
707 West 47th Street
Kansas City, Missouri 64112
1950 Ernest M. Skinner and Son,
built by Carl Bassett
(the last organ built under the direction of Ernest Skinner at age 84)
2013 Quimby Pipe Organs, Inc.

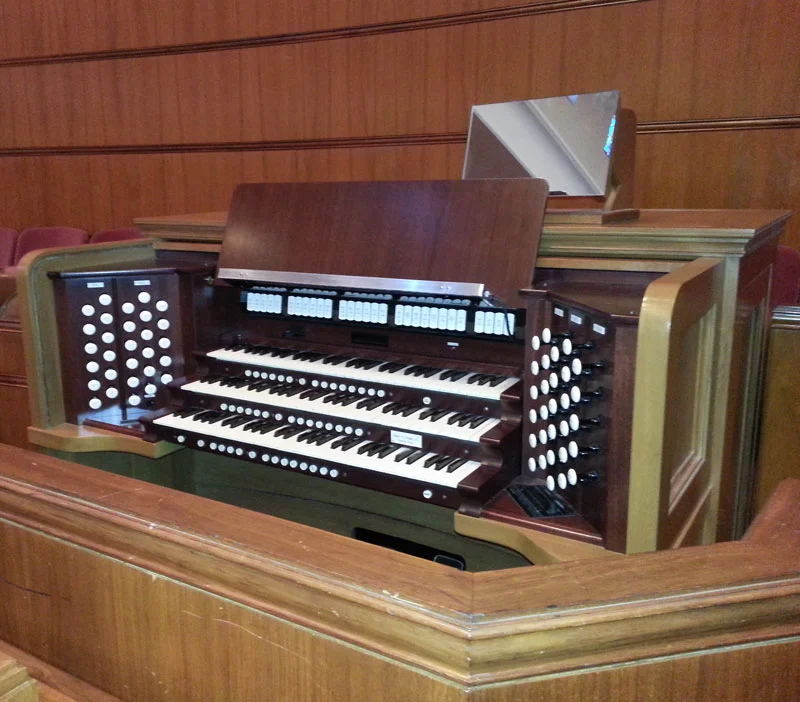

Mechanical restoration of main organ, console rebuild, tonal regulation and the addition of seven ranks.
3M/P Electropneumatic action
Associated Links
SPECIFICATION
GREAT | SWELL | |||
Gemshorn | 16 | Bourdon | 16 | |
First Diapason | 8 | Diapason | 8 | |
Second Diapason | 8 | Harmonic Flute | 8 | |
Principal Flute | 8 | Salicional | 8 | |
Erzahler | 8 | Voix Celeste | 8 | |
Octave | 4 | Flauto Dolce | 8 | |
Fifteenth** | 2 | Flute Celeste | 8 | |
Mixture IV** | 1 1/3 | Octave | 4 | |
Harmonic Tuba* | 8 | Cor de Nuit | 4 | |
French Horn* | 8 | Unda Maris II | 4 | |
English Horn* | 8 | Mixture IV | 2 2/3 | |
Reed Tremolo | | French Trumpet | 16 | |
| Trumpet | 8 | ||
| Cor d'Amour | 8 | ||
| Tremolo | | ||
| Harp | | ||
CHOIR | PEDAL | |||
Harmonic Flute SW | 8 | Resultant | 32 | |
Salicional SW | 8 | Major Bass | 16 | |
Flauto Dolce SW | 8 | Gemshorn GT | 16 | |
Flute Celeste SW | 8 | Gedeckt SW | 16 | |
Cor de Nuit SW | 4 | Major Flute ext. | 8 | |
Nazard** | 2 2/3 | Gemshorn GT | 8 | |
Flautino | 2 | Still Gedeckt SW | 8 | |
Tierce** | 1 3/5 | Octave ext. | 4 | |
Clarinet | 8 | Contra Bombarde SW | 32 | |
Tremolo | | Trumpet SW | 16 | |
| Trumpet SW | 8 | ||
ECHO ** | | |||
Gedeckt | 8 | | ||
Cello | 8 | | ||
Cello Celeste | 8 | | ||
Flute | 4 | | ||
Vox Humana | 8 | | ||
Tremolo | | | ||
* Additions from Vintage Skinner Ranks
** From 1926 Skinner Organ Company Opus 625
COUPLERS
Great to Pedal 8'
Swell to Pedal 8-4'
Choir to Pedal 8'
Echo to Pedal 8'
Swell to Great 16-8-4'
Choir to Great 16-8-4'
Swell to Choir 16-8-4'
Echo on Choir 8-4'
Pedal to Choir 8'
Swell to Swell 16-4' Unison Off
Choir to Choir 16-4' Unison Off
Great to Great 4' Unison Off
MIDI on Great
MIDI on Swell
MIDI on Choir
