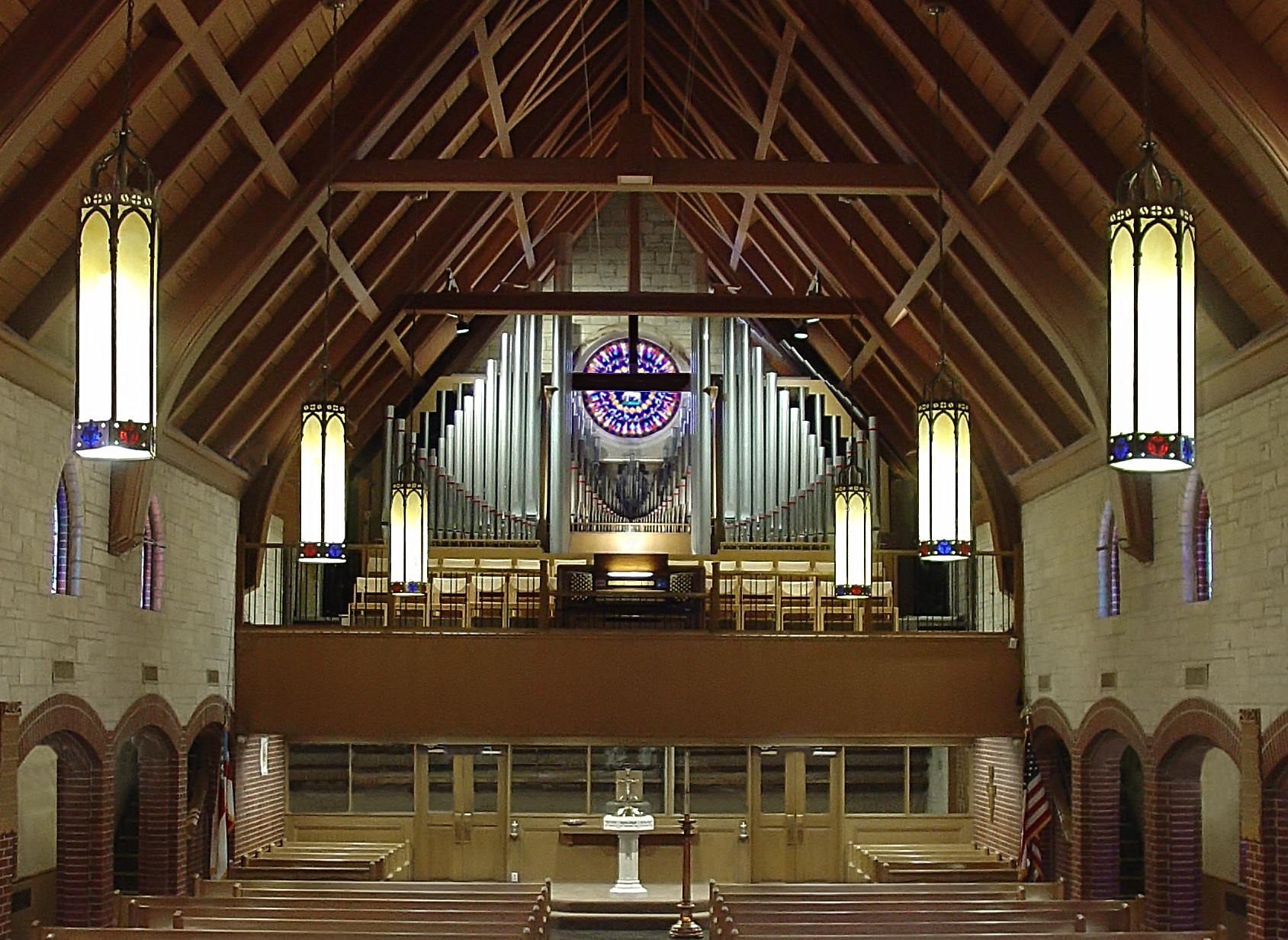

St. Michael and All Angels Episcopal Church

6630 Nall Avenue
Mission, Kansas 66202

1969 Reuter Organ Co., Opus 1696
1976 Reuter Organ Co. Antiphonal Division
1993 Quimby Organ Co. Antiphonal Console
1997 Reuter Organ Co. English Tuba
2008 McCord Organ Co. Restoration / additional ranks (Reuter pipework)

3M/P plus Antiphonal. 6 divisions. 53 ranks.
Manual compass 61 notes.
Pedal compass 32 notes.
Electro-pneumatic (EP) chests.

Associated Links

Church Website

OHS Database

SPECIFICATION

GREAT ORGAN (13 Ranks)

SWELL ORGAN (13 Ranks)
Rohrflöte (Sw Rohrflöte)
16
  Rohrflöte (Sw Rohrflöte)
16
Principal*
8
  Viola
8
Bourdon *
8
  Viola Céleste (TC)
8
Harmonic Flute*
8
  Rohrflöte
8
Octave
4
  Spitzprincipal
4
Spillflote
4
  Rohrflöte (Sw Rohrflöte)
4
Super Octave
2
  Nasard
2 2/3
Fourniture*
IV
  Blockflöte
2
Cornet III *
III
  Tierce
1 3/5
Tuba (Choir)
8
  Plein Jeu
III
Posaune 8 (Pedal)
8
  Basson (Sw. Contre Hautbois)
16
  Hautbois
8
  Trompette *
8
  Clairon (Sw. Hautbois)
4
  Tremulant
  Zimbelstern *
CHOIR ORGAN (12 Ranks)

PEDAL ORGAN (5 Ranks)
Diapason
8
  Resultant (Subbass) *
32
Klein Gedect *
8
  Principal
16
Gemshorn
8
  Subbass *
16
Octave
4
  Bourdon
16
Nachthorn
4
  Rohrflöte (Sw Rohrflöte)
16
Italian Principal
2
  Rohr Quinte (Pedal Bourdon)
10 2/3
Larigot
1 1/3
  Principal (Pedal Principal 16)
8
Mixture
II
  Bourdon (Pedal Bourdon 16)
8
Krummhorn
8
  Rohrflöte (Sw Rohrflöte)
8
Petite Trompette *
8
  Bourdon (Pedal Bourdon 16)
4
Posaune (Pedal)
16
  Bombarde *
16
Tuba
8
  Posaune
16
Posaune (Pedal)
8
  Basson (Swell)
16
Chimes *
  Tuba (Choir)
8
Tremulant
  Posaune (Pedal Posaune 16)
8
  Krummhorn (Choir)
4
  Chimes *
ANTIPHONAL ORGAN (8 Ranks)

ANTIPHONAL PEDAL ORGAN (2 Ranks)
Prinzipal
8
  Bordun
16
Singend Gedeckt
8
  Octav Bass
8
Dolce *
8
  Bordun (Ant. Pd. Bordun 16)
8
Oktav
4
  Choral Octav (Ant. Pd. Octav Bass)
4
Spitzflöte
4
  Bourdun (Ant. Pd. Bordun 16)
4
Scharf
II-III
  Antiphonal to Great
  Antiphonal to Choir
  Antiphon to Swell

ANTIPHONAL CONSOLE
(11 Stops/10 Ranks)
12 Blind General Pistons *, 6 Antiphonal Pistons *
1 Manual (Adjustable Split Keyboard) *
All-Swells Expression *

MAIN CONSOLE
(56 Stops/43 Ranks)
12 General Pistons, 6 Divisional Pistons for Swell, Choir, Great, and Pedal
6 Antiphonal Pistons
Piston Sequencer *
Optional French Manual order *
Playback System *
Crescendo Pedal
Full Organ
Matters multi-level combination action *
3 reversible thumb pistons *, 4 reversible toe studs *
Transposer *

* 2008 Renovation
